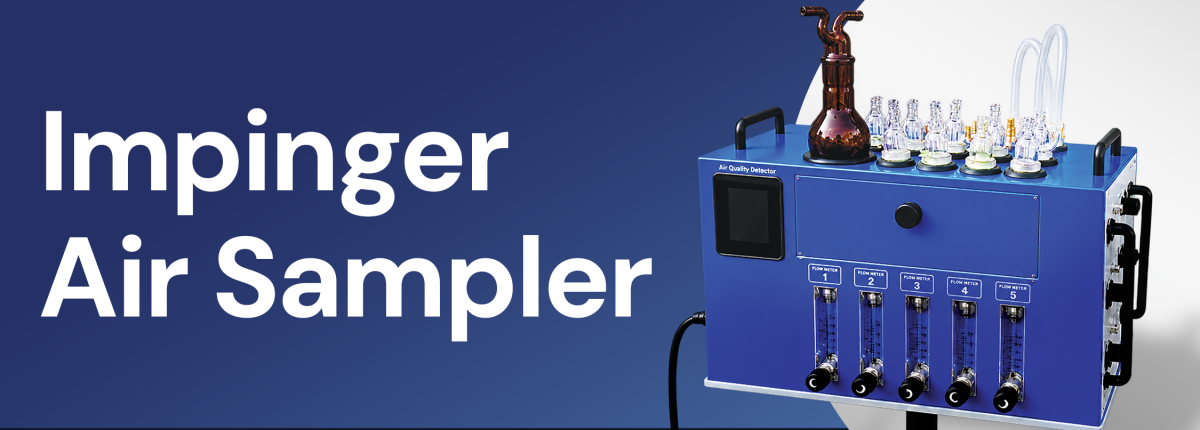

IMPINGER AIR SAMPLER

Spesifikasi Alat :

1. Vacuum Pump System

• Vacuum Pump Technology: Diaphragm Vacuum Pump
• Jumlah Vacuum Pump: 5 unit independent
• Vacuum Capacity: Maks. 5,0 LPM
• Pump Control: Dimmer potensiometer
• Suction Hole: 5 unit, masing-masing diameter ¼ inch

2. Flow Measurement System

• Flow Indicator: 5 unit Direct Reading Flowmeter independent
• Kapasitas Flowmeter:
  • 3 unit dengan kapasitas maks. 1,5 LPM
  • 2 unit dengan kapasitas maks. 0,8 LPM

3. Air Circulation System

• Inlet Fan: 1 unit, berfungsi membantu pemasukan dan sirkulasi udara ke dalam sistem
• Exhaust Fan: 1 unit, berfungsi membantu pembuangan udara dari sistem

4. Air Quality Monitoring

• TVOC 8-in-1 Air Quality Monitor: 1 unit
• Display: Digital display
• Monitoring: Real-time / direct reading
• Unit Pengukuran: Disesuaikan dengan masing-masing parameter

5. Impinger & Sampling Accessories

• Impinger Bottle: 1 pcs
• Midget Impinger Tube – Amber: 1 pcs
  • Inlet amber
  • Fritted bubbler untuk NO₂
  • Ukuran pori: 60 µm
  • Kapasitas: 100 mL
• Midget Impinger Tube – Clear: 4 pcs
  • Kapasitas: 30 mL
• Mist Trap: 5 unit
  • Dilengkapi silica gel
  • Material/warna: Clear
  • Kapasitas: 30 mL

6. Electrical & Physical Specification

• Power Supply: DC 12 V, 100 W
• Dimension (L × W × H): 42,5 × 23 × 26 cm
• Weight: ±5 kg
• Noise Level: ±60 dB

Parameter Pengukuran :

• TVOC (Total Volatile Organic Compounds)
• HCHO (Formaldehyde)
• PM2.5 (Particulate Matter ≤ 2.5 µm)
• PM10 (Particulate Matter ≤ 10 µm)
• CO₂ (Carbon Dioxide)
• CO (Carbon Monoxide)
• Humidity (Kelembaban Relatif)
• Temperature (Suhu)
